「此貨品未有現貨,下一批到貨日期預計為: 2025年6月」
產品特點
提升舒適度
輕鬆調整螢幕角度,流暢移動,打造極致符合人體工學的使用體驗
提升工作效率
抬升、傾斜、旋轉螢幕,找到完美視角,專注提升生產力
模組化架構
靈活設計,搭配多樣配件,適用各種工作環境
最大化工作空間
螢幕可隨需求定位,閒置時可收納至距離牆面僅 10 公分的範圍內
保護周邊設備
內建旋轉限制機制,防止支架碰撞牆面
安裝簡易
零件精簡、調整直覺,讓設定變得輕而易舉

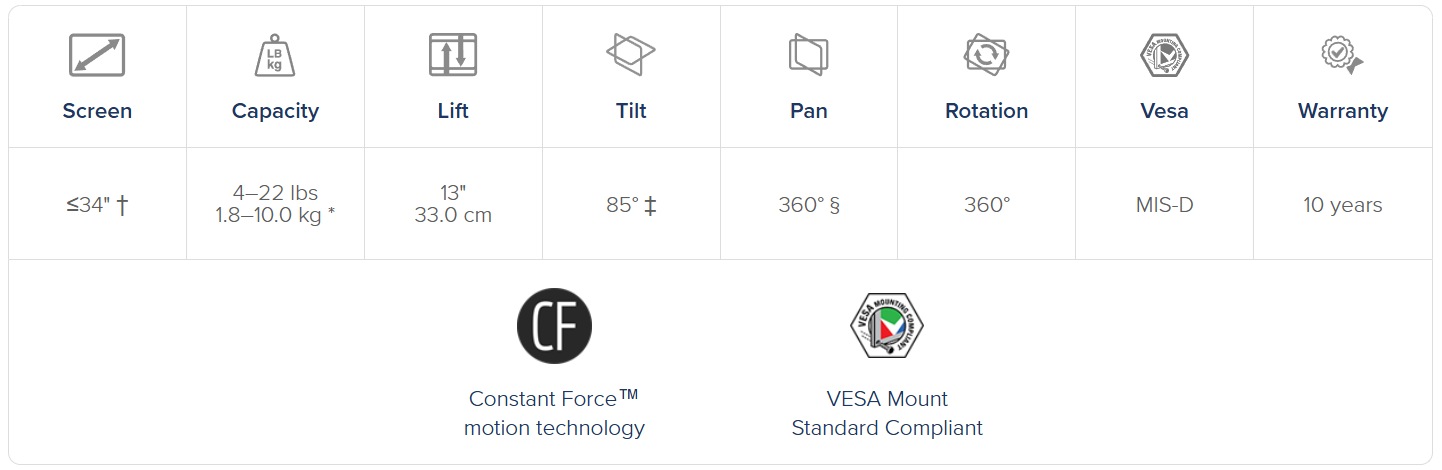

產品規格
![]()
- GTIN: 00698833091601
- Part Number: 45-683-290
- Product Weight: 2.8 kg
- Shipping Weight: 3.7 kg
- Shipping Dimensions: 21.1" x 7.3" x 6.5" (53.5 x 18.5 x 16.5 cm)
- Description: LX Pro Wall Mount Single Monitor Arm
- Includes arm, extension, monitor pivot, wall mount base, fasteners for wood stud or concrete wall, attachment hardware
- Tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment
- Built-in rotation-stop on the extension can be engaged to limit side-to-side motion to deter impacts with wall
- Can be configured to hold a laptop instead of a display; also order the accessory Laptop Tray (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- Aluminum construction offers greater durability and enhanced aesthetics
- † LCD screen size is approximate. This size may be exceeded if display does not surpass weight capacity
- * Weight Capacity: 4 to 22 lbs (1.8 to 10 kg). Display depth greater than 3.6" (9 cm) may affect weight capacity
- ‡ Tilt Range: 70° backward, 15° forward
- § Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (180°), extension/arm (360°), and arm/pivot (180°)
- Extension Range: ≤ 25" (64 cm)
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Attaches directly to sturdy vertical surfaces. When extra support is needed, order a Wall Plate or Wall Track accessory (Wall Track also requires separately ordered bracket 97-091)
- Fasteners for direct attachment to metal studs are not included. When attaching to wall supported with steel studs, the Steel Stud Wall Mounting Kit (60-591-003) is recommended
- Warranty: Ten years
保用/保養條款
香港行貨10年保用
Warranty Period : 10 Years by Ergotron
Service Centre:
Email : [email protected]
