產品特點

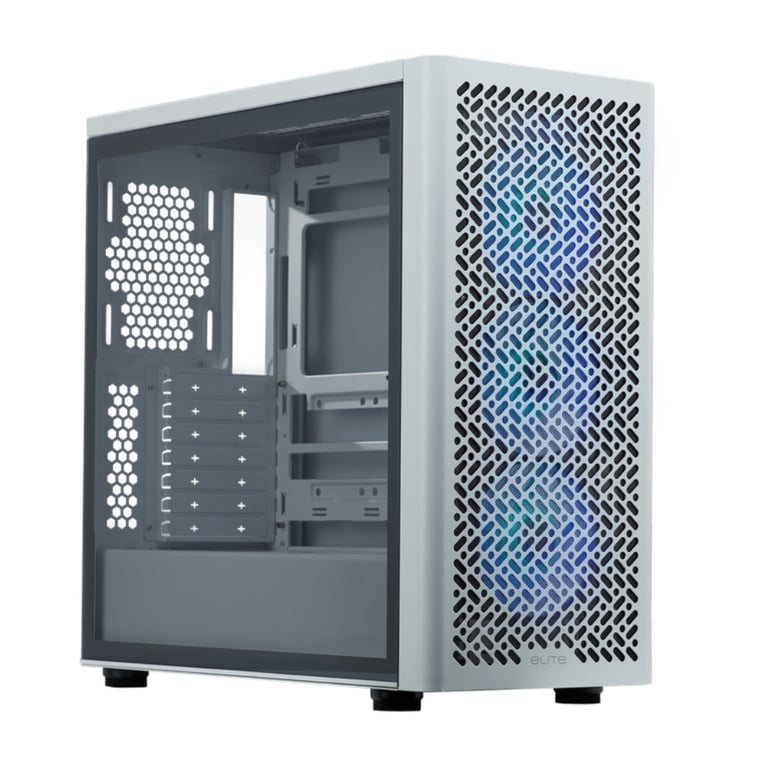

The Elite 502 delivers exceptional cooling and performance with its advanced mesh front panel for enhanced airflow. Designed for mid-to-entry-level builders, it supports up to a 420mm radiator, 410mm GPUs, and modern back-connector motherboards, offering a streamlined and efficient building experience at an accessible price.
產品介紹
![]()
產品規格
Product Name
- ELITE 502
- ELITE 502 White
Model Number
- ELITE 502: E502-KGNN-S00
- ELITE 502 White: E502-WGNN-S00
Color(s)
- ELITE 502: Black
- ELITE 502 White: White
Materials
- Exterior: Steel
- Right Side Panel: Steel
- Left Side Panel: TG
Dimensions
- Including Protrusions: 474 x 230 x 481mm
- Excluding Protrusions: 435 x 230 x 465mm
Volume
49.73L
Motherboard Support
- ITX / Micro ATX / ATX (Supporting Back-connector Motherboard)
- E-ATX (up to 12"x10.9"/30.5cmx27.7cm, may impact cable management)
Expansion Slots
7
Drive Bays
- 5.25": N/A
- 3.5": 2
- 2.5": 2 (Max. 6)

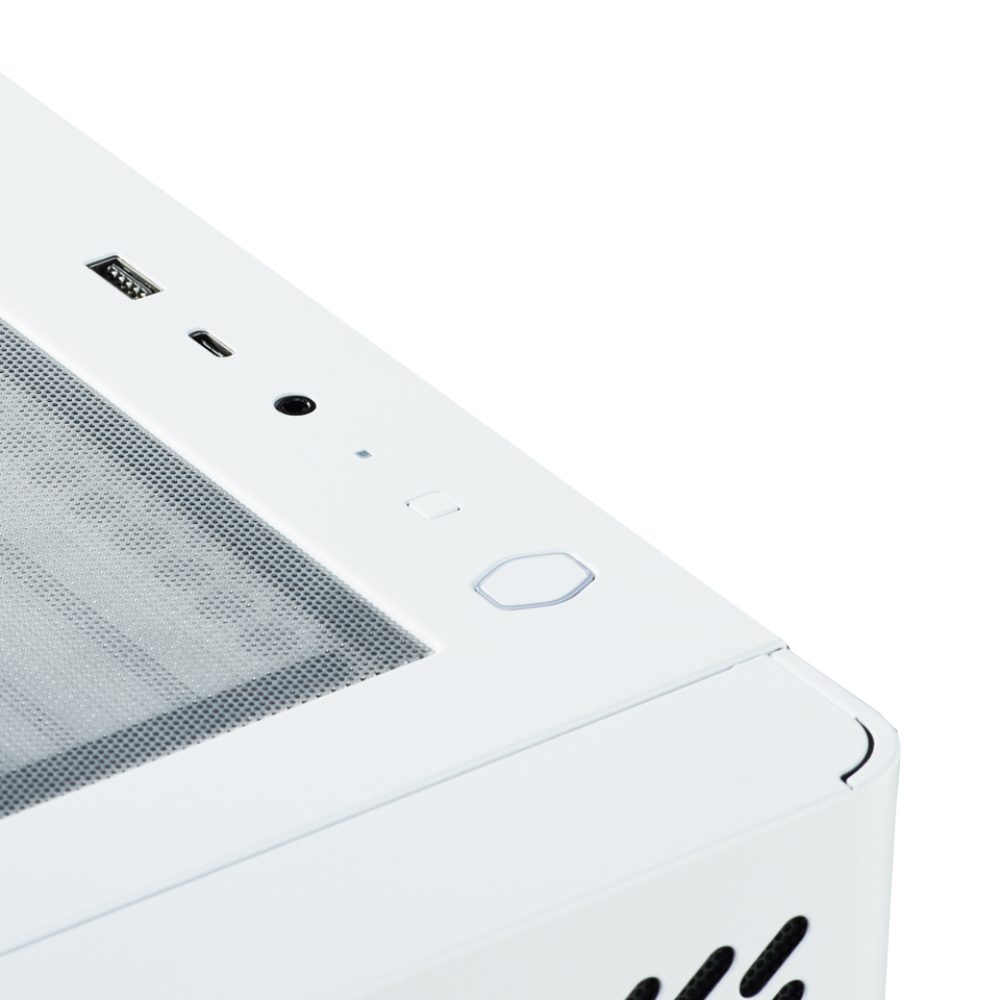

I/O Panel
- USB Ports: 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C
- Audio In/Out: 1x 3.5mm Combo

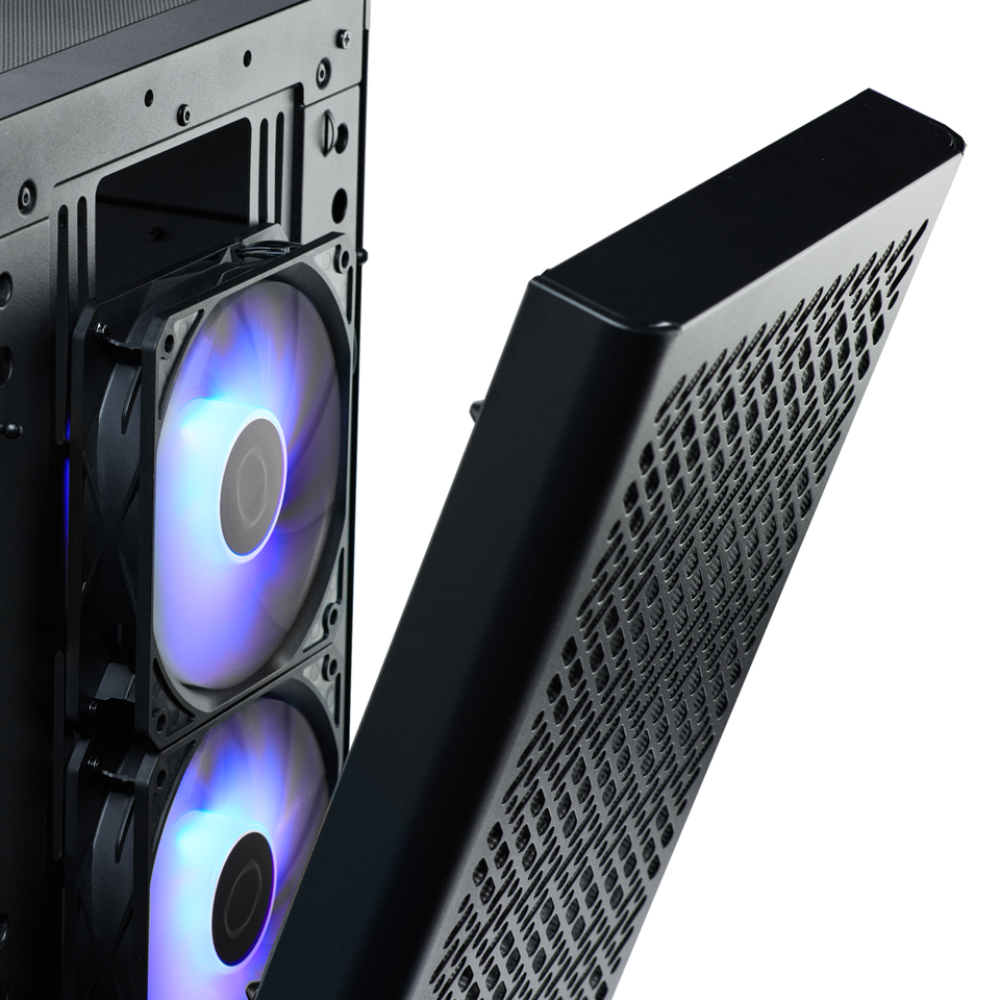

Fan Support
- Front: (Filtered) 3x 140mm / 3x 120mm
- Top: (Filtered) 2x 140mm / 3x 120mm
- Rear: 1x 120mm
Pre-installed Fans
- Front: 3x 120mm ARGB Fans
- Top: N/A
- Rear: N/A
Radiator Support
- Front: 120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm)
- Top: 120 / 140 / 240 / 280 / 360mm
- Rear: 120mm
Clearance
- CPU Cooler: 170mm
- PSU: 170mm, 210mm (w/o HDD Cage)
- Graphics Card (installed 3.5" HDD BRK): 360 / 410mm (w/o front radiator)
Cable Routing
Behind Motherboard Tray: 33-35mm
Dust Filters
Power Supply Support
ATX
Warranty
2 years
Series
Elite Series
Size
Mid Tower
