Specifications |
|
---|---|
Model | CS-H1c |
Camera |
|
Image Sensor | 1/3" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 2.8mm, view angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical) |
Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
IR Night Vision Distance | Up to 32 ft / 10 m |
Video & Audio |
|
Max. Resolution | 1920 × 1080 |
Frame Rate | Max: 25 fps; Self-Adaptive during network transmission |
Video Compression | H.264 |
H.264 Type | Main Profile |
Video Bit Rate | HD; Standard. Adaptive bit rate. |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 1 Mbps |
Function |
|
Smart Alert | Motion detection |
Two-way Talk | Supports |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
Network |
|
Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20 MHz |
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ Cloud Proprietary Protocol |
Interface Protocol | EZVIZ Cloud Proprietary Protocol |
Storage |
|
Local Storage | Supports microSD card (Up to 512 GB) |
Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
General |
|
Operating Conditions | -10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less (non-condensing) |
Power Supply | DC 5V / 1A |
Power Consumption | MAX. 3.0 W |

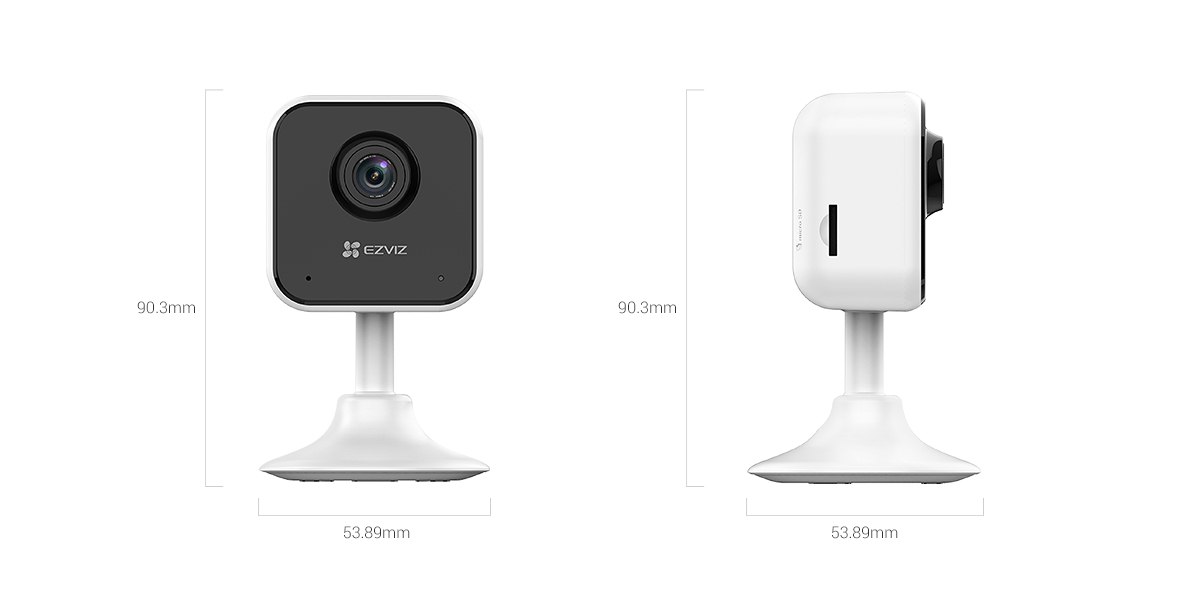

Dimensions | 53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch) |
Packaging Dimensions | 91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch) |
Net Weight | 87 g (3.07 oz) |
Weight (With Package) | 305 g (10.76 oz) |
In the box |
|
In the box | H1c Camera ×1 |
Power Adapter x1 | |
2-Meter Power Cable x1 | |
Foam Sticker x2 | |
Metal Plate x1 | |
Regulatory Information x2 | |
Quick Start Guide x1 | |
Certifications |
|
Certifications | CE/RoHS/WEEE/REACH |
