With the H5 4G, you can easily create a security system even in open, Wi-Fi-challenged areas. It is equipped with 2K video, person and vehicle detection, and activity-triggered active defense to relieve many of your pain points for 24/7 outdoor monitoring. As a reliable camera, it functions well during the nighttime and in bad weathers, providing a low-maintenance solution for lasting peace of mind.
Supports 4G Network Connectivity
Specifications
Specifications | |
---|---|
Model | CS-H5-R201-1H3KFL4GA |
Camera | |
Image Sensor | 1/2.8" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 4mm @ F1.6, view angle: 102°(Diagonal), 86° (Horizontal), 46° (Vertical) 6mm@ F1.6, view angle:62°(Diagonal), 52° (Horizontal), 28° (Vertical) |
Minimum Illumination | 0.01 lux @(F1.6 ,AGC ON) ,0 Lux with IR |
Lens Mount | M12 |
Day / Night Switch | IR-Cut filter with auto-switching |
DNR | 3D DNR |
WDR | Digital WDR |
BLC | Supports |
IR Night Vision Distance | Up to 98 ft. / 30 m |
Video & Audio | |
Max Resolution | 2304 × 1296 |
Frame Rate | Self-Adaptive during network transmission |
Video Compression | H.265 / H.264 |
H.265 Type | Main Profile |
Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
Audio Bit Rate | Self-Adaptive |
Network | |
Frequency Bands | IN LTE-FDD:B1/B3/B5/B8 IN LTE-TDD:B34/B38/B39/B40/B41 EU LTE-FDD:B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD:B2/B3/B4/B5/B7/B8/B28/B66 |
Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
Functions | |
Smart Alarm | Human Motion Detection,Vehicle Detection |
Customized Alert Area | Supports |
Two-way Talk | Supports |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
Storage | |
Local Storage | Supports microSD Card (Up to 512 GB) |
Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
General | |
Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
IP Grade | IP67 |
Power Supply | DC 12V/1A |
Power Consumption | Max. 7W |

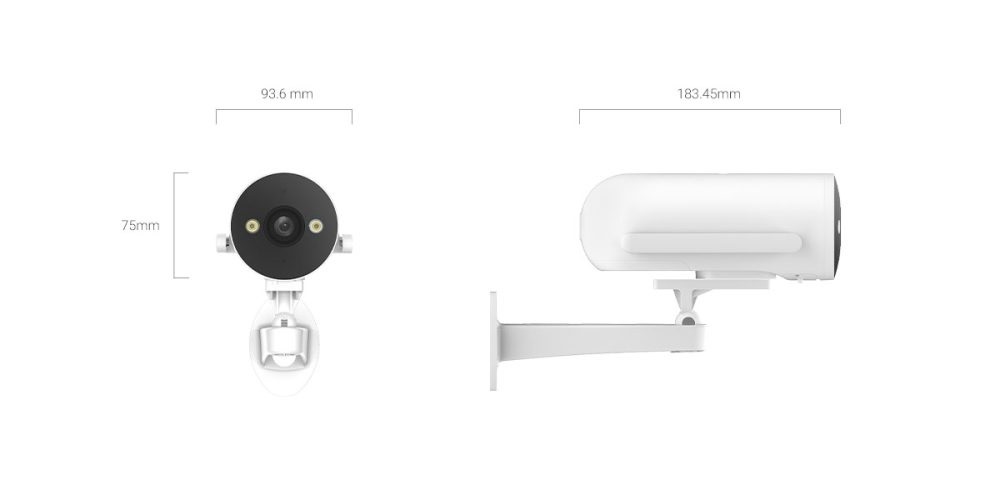

Dimensions | 183 × 93 × 75mm (7.20 × 3.66 × 2.95 inch) |
Packaging Dimensions | 256 × 197 × 118mm (10.08 × 7.76 × 4.65 inch) |
Weight | Net Weight: 482g With Package: 856g |
In the box | |
In the box | - Camera |
- Mounting Bracket | |
- Drill Template | |
- Power Adapter | |
- Waterproof Kit | |
- Bracket Screw Kit | |
- Regulatory Information | |
- Quick Start Guide | |
Certifications | |
Certifications | CE / UL / WEEE / RoHS / REACH |
