Model
RT-BE88U
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE7200 ultimate BE performance : 1376+5764 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 4x4
5GHz 4x4
Processor
2.6GHz quad-core processor
Memory
256 MB Flash and 2 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

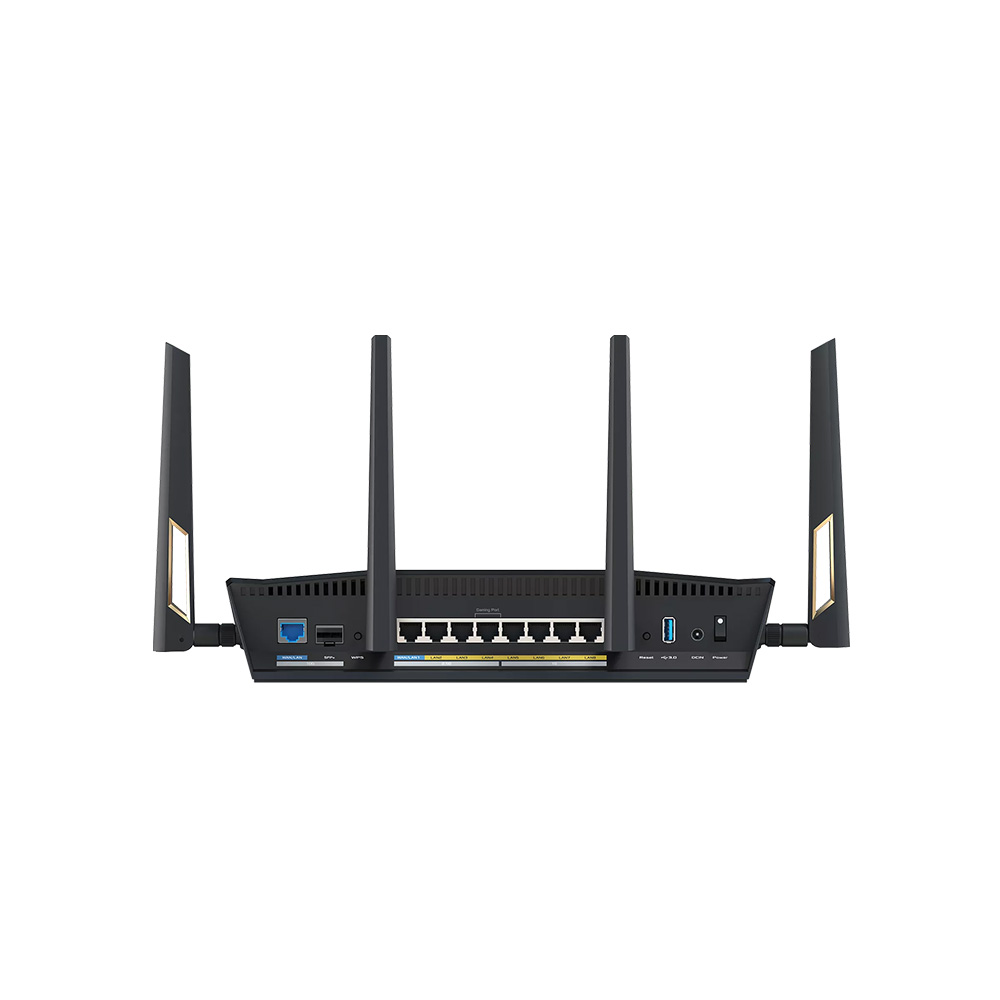

I/O Ports
1 x 10Gbps for WAN/LAN, 1 x 10Gbps SFP+ for WAN, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN, 4 x RJ45 10/100/1000Mbps for WAN/LAN, USB 3.2 Gen1 x1
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
WAN x1
10G WAN x1
10G SFP+ x1
LAN x1
USB 3.2 Gen 1 x1
2.4GHz x1
5GHz x1
Power x1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current ； 19.5 V with max. 2.31 A current
Package Content
RT-BE88U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
1060 g
Product Dimensions
300*188*60.5
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
WTFast
Mobile Game Mode
Gear Accelerator
OpenNAT (Game Profile)
Gaming Port
Parental Control
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64
Guest Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
Support Guest Network Pro
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
Guest Network Connection Time Limit
Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
Security
AiProtection
VPN
WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
