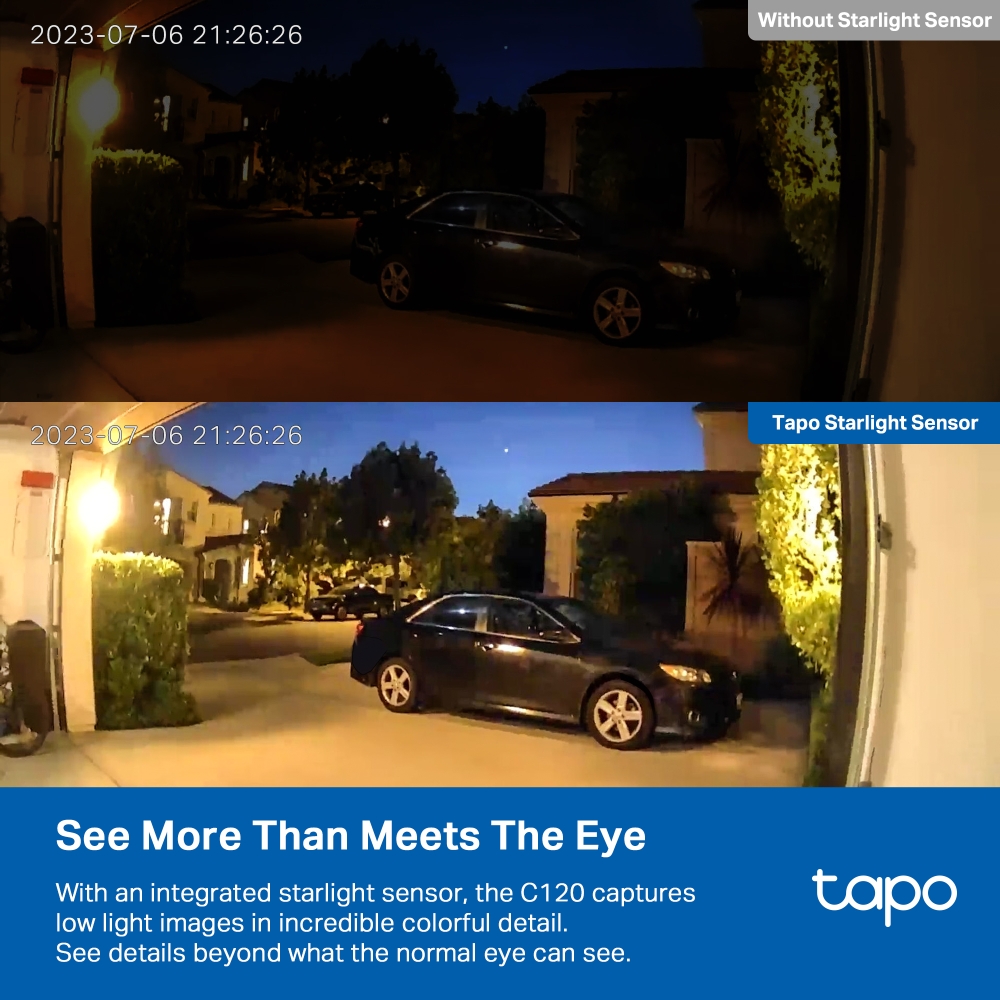

感光元件 | 1/2.9” 逐步掃描 CMOS 星光級感光元件 |
---|---|
鏡頭 | Focal Length: 3.17mm Aperture: 1.65 Field of View: 120°(Diagonal), 103°(Horizontal), 55°(Vertical) |
偵測範圍 | / |

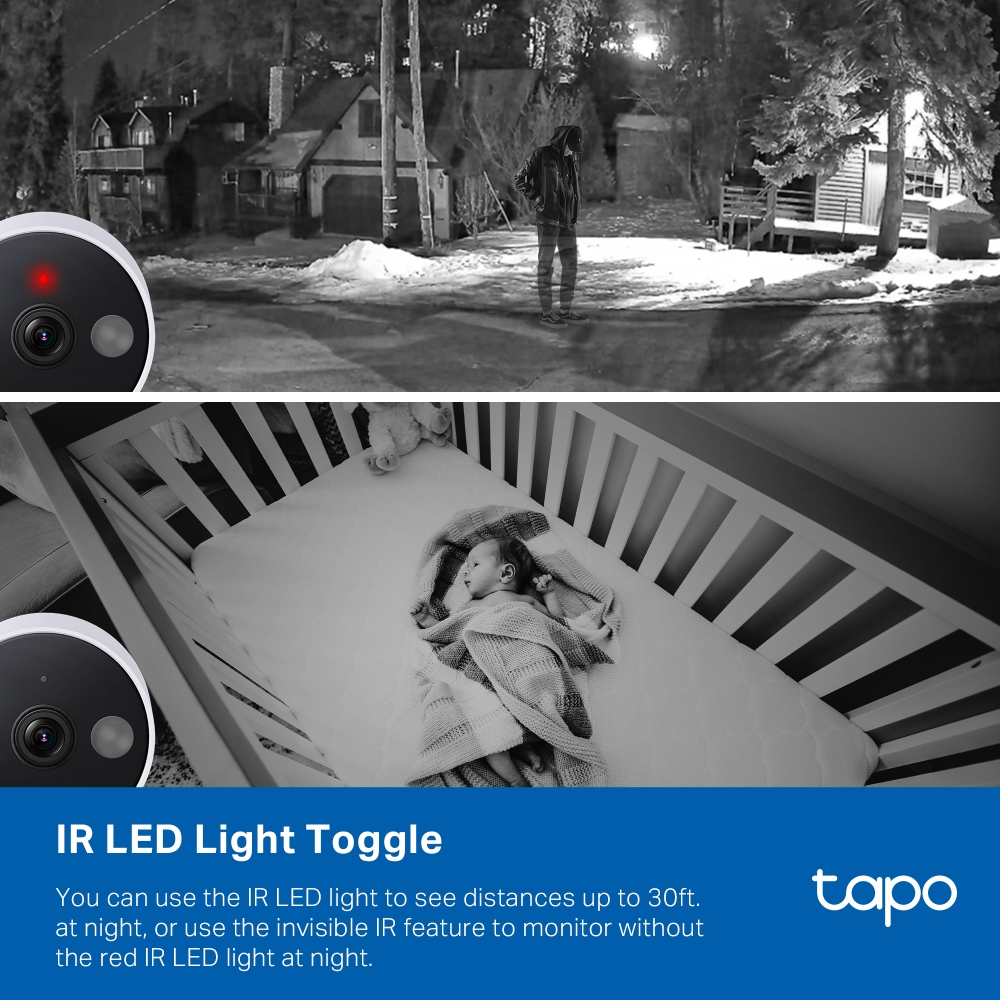

夜視功能 | 850nm 紅外線 LED 10公尺 940 nm 紅外線 LED 10公尺 全彩夜視 |
燈光 | / |
介面&按鍵 | 1× RESET Button 1× MicroSD Card Slot (Up to 512 GB) |
網關相容性列表 | / |
解析度 | 2K QHD 4MP (2560 * 1440 px) |
鏡頭 | |
---|---|
焦距 | 3.17mm |
光圈 | 1.65 |
視角範圍 | 120°(可視角度), 103°(水平), 55°(垂直) |
HUB | |
---|---|
設備相容性 | / |
連線相容性 | / |
介面&按鍵 | / |
影像&語音 | |
---|---|
最高解析度 | 2K QHD 4MP (2560 × 1440 px) |
幀率 | 20 fps (Self-adaptive according brightness) |
數位變焦 | 12x |
影像壓縮 | H.264 |
及時影像 | Yes |
影像增強 | 3D DNR WDR |
音訊輸入 & 輸出 | Built-in Microphone and Speaker |
語音通信 | Two-Way Audio with Noise Cancellation |
警報音量 | 96dB (Level measured at 4-inch/10-cm distance) |
儲存 | |
---|---|
本地儲存 | MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards > |
雲端儲存 | Tapo Care Cloud Storage Services (Subscription required) |
偵測及通知 | |
---|---|
感測器 | / |
AI 偵測 | Motion Detection Person Detection Line-Crossing Detection BabyCry Detection Vehicle Detection Pet Detection Meow Detection Bark Detection Glass-Breaking Detection |
行為區 | Yes |
輸出通知 | System Notification System Notification with Snapshot (Tapo Care Services) |
聲音 | |
---|---|
語音通信 | 雙向語音 |
聲音輸入 & 輸出 | 麥克風和喇叭 |
網路 | |
---|---|
網路連接 | Connect via Wi-Fi |
無線連接 | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
協定 | 2.4 GHz Wi-Fi, 802.11b/g/n |
無線速率 | 11 Mbps (802.11 b) 54 Mbps (802.11 g) 72.2Mbps (802.11n) |
乙太網路 連接埠 | / |
無線安全性 | WPA, WPA2-PSK |
RTSP | / |
ONVIF | / |
安全性 | 128 bit AES 加密含 SSL/TLS |
頻率 | 2.4 GHz Wi-Fi |
安全性 | |
---|---|
安全性 | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
電源 | |
---|---|
電源 | 5V DC Power Adapter |
輸入電壓 | 100-240 V, 50/60 Hz |
輸出電壓 | 5.0 V, 1.0 A (DC Power) |
一般規格 | |
---|---|
智能整合 | Google Assistant, Amazon Alexa |
耐候性 | / |
系統需求 | Tabletop Ceiling-Mounted |
運作溫度 | -20℃~45℃ |
儲存溫度 | -20℃~60℃ |
運作濕度 | 10%~90% RH |
儲存濕度 | 5%~90% RH, Non-condensing |
充電溫度 | / |
尺寸 | 2.65 × 2.26 × 1.74 in (67.4 × 57.4 × 44.1mm) |
包裝內容 | Tapo C120 Camera USB Power Adapter Quick Start Guide Mounting Screws Mounting Template Metal Plate3M Adhesive Mounting Anchors 3-Meter Type-C Wire Cable Organizers Detaching Pin |
認證 | / |
活動通知 | |
---|---|
輸入觸發 | 人物/寵物/車輛/移動偵測 |
輸出通知 | 推播通知 |
環境 | |
---|---|
運作溫度 | 0℃~40 ℃ (32 ℉~104℉) |
存放溫度 | -20℃~60 ℃ (-4 ℉~140℉) |
運作濕度 | 10%~90% 無凝結 |
存放濕度 | 0%~90% 無凝結 |
包裝內容物 | |
---|---|
包裝內容物 | Tapo C120 攝影機 ×1 變壓器 ×1 3公尺 Type-C 線 ×1 底座膨脹螺絲 ×4 底座螺絲 ×4 電源線固定片 ×2 定位貼紙 ×1 攝影機磁吸支架 ×1 3M 背膠×1 快速安裝手冊 ×1 |
硬體規格 | |
---|---|
按鈕 | 重設按鈕 |
LED指示燈 | 系統 LED |
電源供應器輸入 | 100-240V, AC, 50/60 Hz, 0.3 A |
電源供應器輸出 | 5.0 V / 1.0 A |
產品尺寸 (長 x 寬 x 高) | 6.74*5.74*6.4公分 |
