產品特點

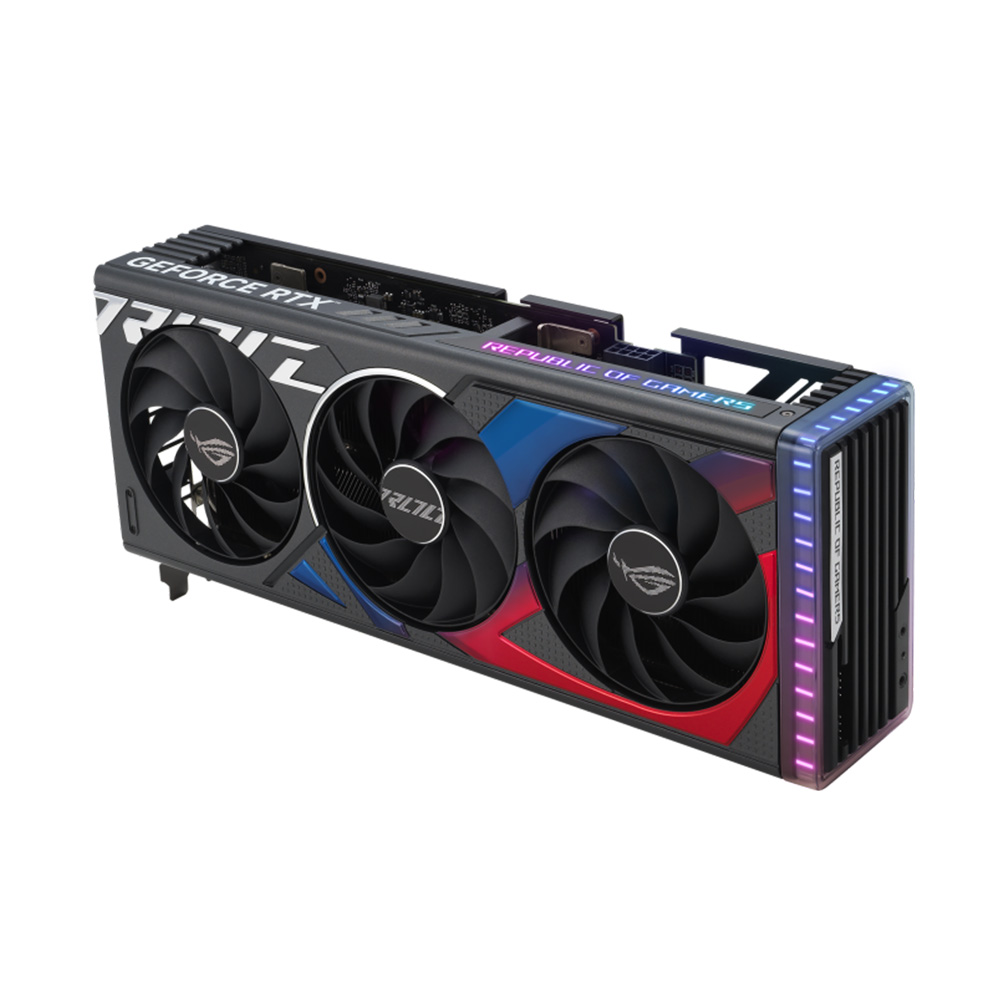

ROG Strix GeForce RTX™ 4060 Ti 8GB GDDR6 OC Edition with DLSS 3 and chart-topping thermal performance.
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: 2715 MHz (OC mode)/ 2685 MHz (Default mode)
- Axial-tech fans scaled up for 21% more airflow
- 3.1-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Vented backplate works in tandem with upgraded Axial-tech fans to maximize heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
產品規格
Graphic Engine
NVIDIA® GeForce RTX™ 4060 Ti
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
8GB GDDR6
Engine Clock
OC Mode: 2715MHz Default Mode: 2685MHz (Boost)
CUDA Core
4352
Memory Speed
18 Gbps
Memory Interface
128-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Collection Card 1 x Speedsetup Manual 1 x Thank you Card 1 x ROG Graphics card holder 1 x ROG Velcro Hook & Loop
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
311.4 x 133.5 x 61.9mm
Recommended PSU
650W
Power Connectors
1 x 8-pin
Slot
3.1 slot
AURA SYNC
ARGB
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
